Details

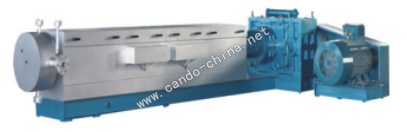

Extruder

1. Application:
   POY FDY melt spinning of PET, PA6,PA66, PP chips.
2. Characteristic：
   Professional design is suitable for various process requirements.

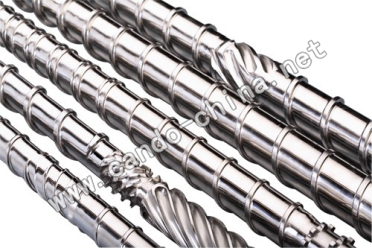

   LTM screw can ensure high melt quality.
3. Technical Parameters：
   Dia. Of screw： 20～200 mm           L/D： 25：1， 28：1，30：1
   Output pressure (Mpa):15～25          Output (kg/h) : 6～ 1400

No	model	L/D	RPM (r/min)	Capacity(kgs/h)		pressure	Drive power (KW)	heater (KW)	zone
				PET	PP
1	Φ45	25	20-80	38	20	15-20	11	4.5	3
2	Φ65	25	20-80	90	55	15-20	18.5	23	5
3	Φ80	30	20-70	180	110	15-20	37	38	5
4	Φ90	25	20-70	250	135	15-20	45	38	5
5	Φ105	25	20-70	300	170	15-20	55	48	5
6	Φ120	25	20-60	350	220	15-20	75	54	6
7	Φ135	25	20-60	430	275	15-20	110	70	6
8	Φ150	25	20-60	500	325	15-20	110	84	6
9	Φ160	25	20-60	650	400	15-20	132	93	6
10	Φ170	25	20-50	800	500	15-20	160	100	7
11	Φ180	25	20-50	950	550	15-20	185	110	7
12	Φ200	25	20-50	1200	700	15-20	250	150	8

Above data as per design just for reference
