Product Name:Continuous Polymer Filter
Continuous Polymer Filter
1.Application:
POY, FDY, Nylon, compound fiber of nylon and polyester, PP spun-bonded, non-woven etc.
2.Characteristic
Novel structure, power-effective and widely applicable.
3.Heating method
Dowtherm recirculation heating, electric heating of heat transfer oil, or electric heating of dowtherm.
4.Technical Parameters
Melt pressure: Max. 25Mpa Dowtherm pressure: Max. 1.0Mpa
Allowable pressure differentia: 6Mpa Operating temperature: Max. 310℃
Filter precision: 15,20,25,40,60 μm Filter area: 0.6 – 9.5m2

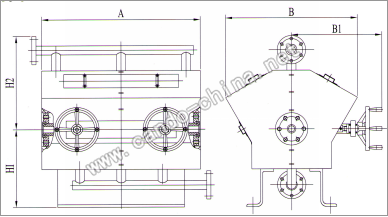

5.Vertical CPF

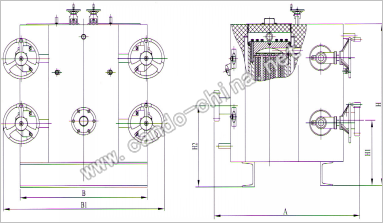

6.Horizontal CPF
Above data as per design just for reference
All design as per client request
